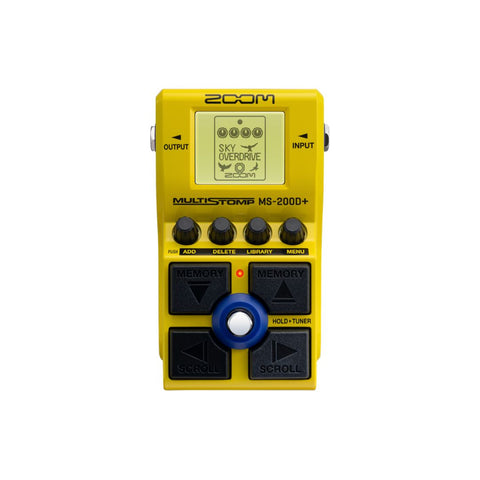

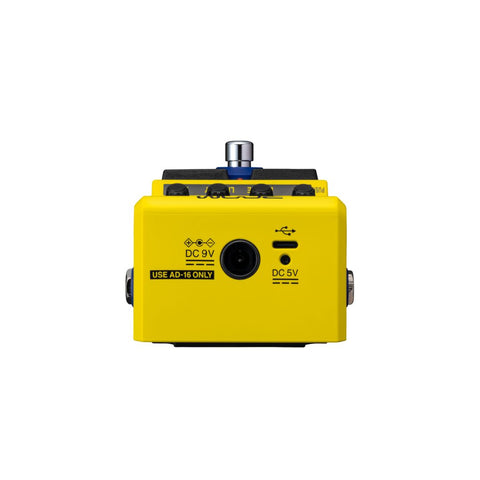

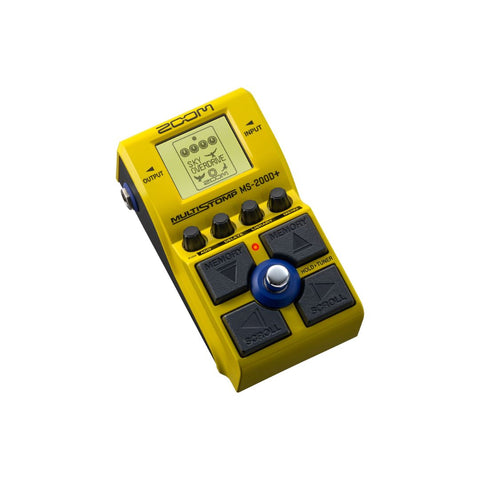

Zoom MS200D Plus Guitar Multi Stomp Pedal
A culmination of Zoom's most coveted MultiStomp features, the MS-200D+ represents the pinnacle of pedalboard versatility — one dedicated entirely to the art of overdrive, distortion, and the like. Over 150 effect options offer limitless intrinsic potential from vintage-style drives to subtle modern fuzz — not to mention the ability to tweak, adjust, and save your own presets for later use via the four onboard parameter knobs and Cross Key switches. Plus, a built-in tuner makes light work of intonation control without having to add another pedal to your board. Complete with a sleek metal housing, USB-C power compatibility, and the untapped potential of the pedal's dual-effect processing, the MS-200D+ deserves a spot in any discerning guitarist's arsenal.
Features
- 200 built-in distortions and drives from Zoom’s latest generation of effects, including 152 new Zoom Original drives/distortions, 36 boutique emulations, & 12 existing Zoom drives/distortions.
- Use up to 2 effects at the same time (i.e. Booster + Drive)
- Single stompbox design
- 4x Cross Key switches (MEMORY / SCROLL) for easy operation by foot
- Runs on 2 AA batteries or AC Adapter
- Chromatic tuner supports all standard guitar tunings, including open & drop tunings
- Handy Guitar Lab App for iOS
Specs
| Maximum number of simultaneous effects | 2 effects | |
| User patch memories | 250 | |
| Sampling frequency | 44.1 kHz | |
| A/D conversion | 24-bit 128× oversampling | |
| D/A conversion | 24-bit 128× oversampling | |
| Signal processing | 32-bit | |
| Frequency response | 20 Hz – 20 kHz (+0.5 dB/−0.5 dB) (when 10kΩ load) | |
| Display | 160 × 128 dot-matrix LCD | |
| Input | INPUT | Standard mono phone jack |
| Rated input level: −20 dBu | ||
| Input impedance (line): 470 kΩ | ||
| Outputs | L/R | Standard mono phone jacks |
| Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher) | ||
| Input S/N | 122 dB | |
| Noise floor (residual noise) | L/R | –100 dBu |
| Power | AC adapter | 9V DC 500mA center negative (ZOOM AD-16) |
| 2 AA batteries | Alkaline, Lithium or rechargeable NiMH batteries | |
| • USB bus power is supported. | ||
| Estimated operation times using batteries | Alkaline batteries | About 7 hours |
| NiMH batteries (1900 mAh) | About 6.5 hours | |
| Lithium batteries | About 14 hours | |
| • These values are approximate. • Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions. | ||
| USB | Port | USB 2.0 Type-C |
| Supported cable type | Type-C | |
| Handy Guitar Lab | USB1.1 Full Speed | |
| • Use a USB cable that supports data transfer. | ||
| Dimensions | 133 mm (D) × 79 mm (W) × 61 mm (H) | |
| Weight | 346 g (excluding batteries) 393 g (including batteries) | |
Note: 0 dBu = 0.775 V
- Over 200 formidable drive and distortion effects packed inside one simple stompbox
- 150 new Zoom tones — packed with 36 classics, including boost, fuzz, distortion, and more
- Utilize up to 2 effects at once for unique layering possibilities
- Simple Memory and Scroll cross-key switching make light work swapping presets on the fly
- Up to 200 custom patch slots for near-endless exploration
- Tweak the parameters of any effect with four onboard encoder knobs
- Color-changing LCD for distinguishable effect surfing
- Solid metal frame withstands the rigors of any pedalboard, stage and studio
- Built-in tuner for instant intonation adjustments
- Powered via USB-C, 2 AA batteries, or AC power (power supply not included)
- Pedal Type:Distortion, Overdrive
- Analog/Digital:Digital
- Inputs:1 x 1/4"
- Outputs:1 x 1/4"
- USB:1 x Type C (data transfer, bus power)
- Controls:4 x knobs, 4 x buttons
- Power Source:9V DC (500mA) power supply, USB Bus Power
- Batteries:2 x AA
- Height:2.4"
- Width:3.11
- Depth:5.23"
