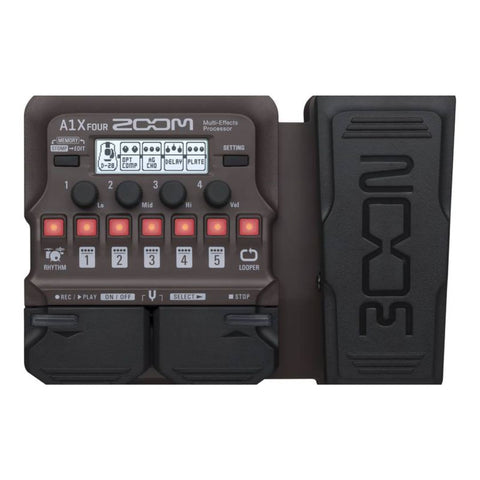

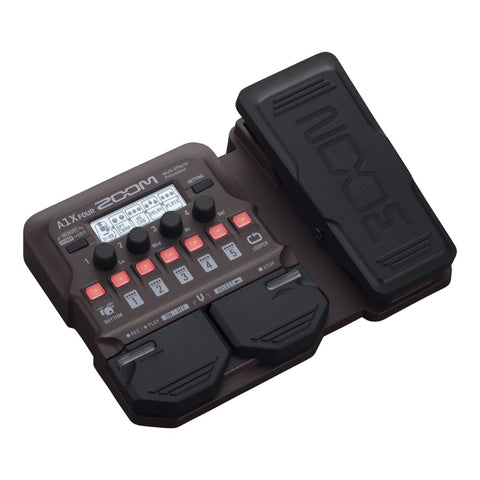

Zoom A1X Four Guitar Multi Effects Pedal
Whether you play the acoustic guitar, saxophone, trumpet, violin, harmonica, or acoustic bass, the ZOOM A1X Four was made with you in mind. This amazing multi-effect processor is jam-packed with more than 80 effects " including 35 acoustic-optimized effects. You ve got plenty of processing power on tap, enabling up to five simultaneous effects, chained together in any order. The A1X Four contains 50 memory locations for storing user-created patches, and ZOOM s Guitar Lab software makes building patches a breeze. This unit yields great-sounding, pro-level sound quality during live use, thanks to two performance modes, hassle-free microphone connection, and an anti-feedback filter. You also get an expression pedal for real-time control over your effects, plus a drum machine, 30-second looper, and super-handy chromatic tuner. If you re a live acoustic performer, the ZOOM A1X Four is the multi-effect unit you ve been waiting for.
Features
- A1 FOUR offers over 80 built-in effects / A1X FOUR offers over 90 built-in effects
- Dedicated effects for acoustic guitar, saxophone, trumpet, violin, and harmonica
- Up to 5 effects can be used simultaneously, chained together in any order
- 50 memory locations for storing user-created patches
- Looper for recording up to 30 seconds / 64 beats of CD-quality audio with seamless start and end times
- ZOOM Guitar Lab software for creating, editing and managing effects and patches
- 68 built-in rhythm patterns tailored for unplugged styles of music can be used in combination with the Looper
- Onboard chromatic tuner supports all standard guitar tunings, including open and drop tunings
- Output jack for connection to amp or headphones
- A1 FOUR and A1X FOUR runs on 4 AA batteries, with alkaline battery life of 18 hours; MAA-1 Requires 2 AA batteries
- USB port for firmware updates, power and connection to ZOOM Guitar Lab
*Manufacturer names and product names mentioned in this presentation are trademarks or registered trademarks of their respective owners and do not indicate any affiliation with ZOOM CORPORATION. All product and artist names are intended only to illustrate sonic characteristics that were used as reference in the development of this product.
Specs
A1 FOUR/A1X FOUR
| Maximum number of simultaneous effects | 5 |
| User patches | 50 |
| Sampling frequency | 44.1 kHz |
| A/D conversion | 24-bit, 128× oversampling |
| D/A conversion | 24-bit, 128× oversampling |
| Signal processing | 32-bit |
| Display | 128x32 dot matrix LCD |
INPUT
| INPUT | Standard mono phone jack Rated input level: -20 dBuInput impedance (line): 470 kΩ |
| AUX IN | Stereo mini jack Rated input level: -10 dBuInput impedance (line): 1kΩ |
OUTPUT
| OUTPUT | Standard stereo phone jack (combined line/headphone) Maximum output level: Line +2 dBu (10 kΩ or more output impedance)Headphones 17 mW + 17 mW (32Ω load) |
| Input S/N | 120dB |
| Noise floor (residual noise) | -97 dBu |
| Power | AC adapter: 9V DC 500mA center negative (ZOOM AD-16) 4 AA batteries (about 18 hours continuous operation time when using alkaline batteries with the LCD backlight off) |
| USB | USB MIDI, USB Micro-B Power can also be supplied through the USB port.When using a cable designed only for power, other USB functions cannot be used. |
| External dimensions | A1 FOUR Height: 156 mm (D) × 130 mm (W) × 42 mm (H)Weight: 340 g (excluding batteries)A1X FOUR Height: 156 mm (D) × 216 mm (W) × 52 mm (H)Weight: 610 g (excluding batteries) |
- A1 FOUR offers over 80 built-in effects / A1X FOUR offers over 90 built-in effects
- Dedicated effects for acoustic guitar, saxophone, trumpet, violin, and harmonica
- Up to 5 effects can be used simultaneously, chained together in any order
- 50 memory locations for storing user-created patches
- Looper for recording up to 30 seconds / 64 beats of CD-quality audio with seamless start and end times
- ZOOM Guitar Lab software for creating, editing and managing effects and patches
- 68 built-in rhythm patterns tailored for unplugged styles of music can be used in combination with the Looper
- Onboard chromatic tuner supports all standard guitar tunings, including open and drop tunings
- Output jack for connection to amp or headphones
- A1 FOUR and A1X FOUR runs on 4 AA batteries, with alkaline battery life of 18 hours; MAA-1 Requires 2 AA batteries
- USB port for firmware updates, power and connection to ZOOM Guitar Lab
- Maximum Simultaneous Effects: 5
- User Patches: 50
- Sampling Frequency: 44.1 kH
- Signal Processing: 32-bit
- A/D Conversion: 24-bit, 128× oversampling
- D/A Conversion: 24-bit, 128× oversampling
- Display: 128 × 32 dot-matrix LCD
- Input: 1 x 1/4" mono
- Aux Input: 1 x 1/8" stereo mini
- Output: 1 x 1/4" stereo (combined line/headphone)
- Input S/N: 120 dB
- Noise Floor: -97 dBu
- USB: USB Micro-B (USB MIDI, bus power)
- Power Source: 9V DC 500mA center-negative (ZOOM AD-16), USB bus power
- Batteries: 4 x AA
- Battery Life: Approx. 18 hours (alkaline, LCD backlight off)
- Dimensions: 216 × 156 × 52 mm (W × D × H)
- Weight: 610 g (excluding batteries)
- A1X FOUR Multi-Effects Processor
- MAA-1 Mic Amp
- Quick Guide
- Patch List
