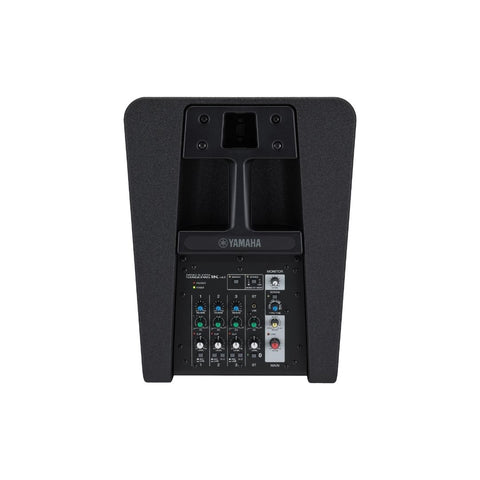

Yamaha Stagepas 1K MII 1100W Bluetooth Portable PA System

1100W, 125 dB SPL peak @1m portable PA system with a 5-channel digital mixer, 12-inch subwoofer, 1.5-inch x 10 line array speaker, Bluetooth input, SPX digital reverbs, Priority Ducker, 1-knob EQ and multi-band compressor for master output.

Features

• 1100W power output

• 12-inch subwoofer for low frequency

• 1.5-inch x 10 slim line array speaker for high frequency

• Digital mixer: 3 mono mic/line + 1 stereo line

• Multi-band comp “MODE” for master output

• 1-knob EQ per channel

• High-resolution SPX digital reverb: 4 types with parameter control

• Priority Ducker for stereo channel

• 4-band PEQ per channel via remote control app “STAGEPAS Controller”

• 2 x Hi-Z (high impedance) inputs

• Link out and monitor out

• Dedicated cover included

Specification

Outline:

• Type: Powered subwoofer with a line array speaker

Mixing Capability:

• Mixing Channels: 5 (Mono x 3 + Stereo x 1)

• Input Channel Functions: Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST

• Output Channel Functions: MODE (SPEECH/MUSIC/CLUB)

I/O:

• Inputs: Mono x 3 (mic/line) + Stereo x 1 (line) / Mono x 2 (line), Link in x 1

• Outputs: Link out x 1, Monitor out x 1

• Bluetooth: Bluetooth Ver. 5.0, A2DP (SBC, AAC)

• Control and Others: Reverb foot switch, STAGEPAS Controller (iOS/Android app)

On-board Processors:

• DSP: SPX digital reverb (4 programs, parameter control)

General Specifications:

• Speaker Type: Powered subwoofer: Bass-reflex type, Line array speaker: Enclosed

• Frequency Range (-10 dB): 37 Hz - 20 kHz

• Coverage Area: H170° x V30°

• Crossover: 240 Hz

• Maximum Output Level (1m; on axis): 125 dB SPL

• LF Component: Powered subwoofer: 12" (30 cm) Cone

• HF Component: Line array speaker: 1.5" (3.8 cm) Cone x 10

• Amplifier Class: Class-D

• Power Rating (Dynamic): 1100 W

• Power Consumption: 25 W (Idle), 91 W (1/8 power)

• Power Requirements: Depending on area of purchase: 100 V 50 Hz/60 Hz, 110-120 V 60 Hz, 220 V-240 V 50 Hz/60 Hz

• Handle: Top of powered subwoofer x 1

Dimensions:

• System: 334 x 2,000 x 418 mm (maximum)

• Line Array Speaker: 67 x 582 x 86 mm

• Powered Subwoofer: 334 x 550 x 418 mm

• Spacer: 67 x 555 x 86 mm (each)

Weight:

• System: 23.0 kg (maximum)

• Line Array Speaker: 1.8 kg

• Powered Subwoofer: 20.0 kg

• Spacer: 0.6 kg (each)

Accessories:

• Included Accessories: Power cord x 1, Cover x 1

Options:

• Yamaha DL-SP1K: Dedicated dolly

• FC5: Foot switch for reverb ON/OFF
