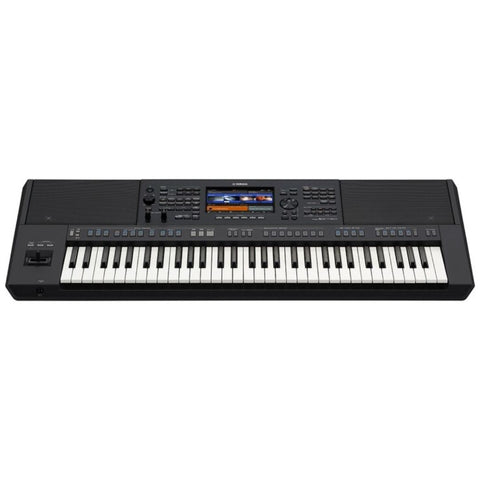

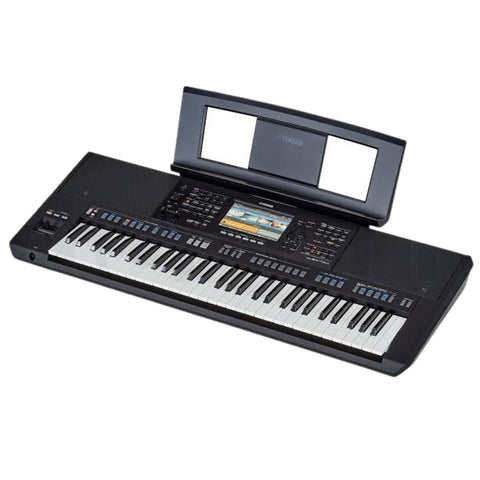

Yamaha PSR-SX700 61-key Arranger Workstation

Take your performance to a whole new dimension with the PSR-SX. Replacing the hugely successful PSR-S series, the PSR-SX700 is the new generation in Digital Workstation sound, design and user experience. These instruments will inspire and intensify your musical performance and enjoyment.

Features

• 986 Voices, including 131 Super Articulation Voices and 24 Organ Flutes
• 41 Drum/SFX Kits
• 400 Styles, including 353 Pro Styles, 34 Session Styles, 10 DJ Styles and 3 Free Play Styles
• Pre-installed Expansion content
• 400 MB onboard memory for expansion data
• 1 GB internal memory
• MIDI Song file capacity: 3 MB per file
• Joystick and FSB keyboard for powerful live performance
• 7" color touch screen
• Assignable function for intuitive and fast control
• Mic/Guitar input
• Playlist and Registration
• Audio Recording: WAV/MP3
• Voice and Style expandability with Yamaha Expansion Manager

Specification

Color/Finish:

• Body Color: Black

Size/Weight:

• Dimensions: Width: 1,017 mm, Height: 139 mm, Depth: 431 mm
• Weight: 11.5 kg
• Packing Box: Width: 1,181 mm (46-1/2"), Height: 251 mm (9-7/8"), Depth: 524 mm (20-5/8")

Control Interface:

• Keyboard: Number of Keys: 61
• Keyboard Type: Organ (FSB), Initial Touch
• Touch Response: Normal, Soft 1, Soft 2, Hard 1, Hard 2
• Joystick: Yes
• Control Knobs: 2 (assignable)
• Display Type: TFT Color Wide VGA LCD
• Display Size: 800 x 480 dots (7 inch)
• Touch Screen: Yes
• Display Color: Color
• Display Language: English, German, French, Spanish, Italian
• Panel Language: English

Voices:

• Tone Generating Technology: AWM Stereo Sampling
• Polyphony: Number of Polyphony (Max.): 128
• Preset Voices: 986 Voices + 41 Drum/SFX Kits
• Featured Voices: 131 S.Art!, 30 Mega Voice, 31 Sweet! Voices, 74 Cool! Voices, 89 Live! Voices, 24 Organ Flutes!
• XG Compatibility: Yes (for Song playback)
• GS Compatibility: Yes (for Song playback)
• GM Compatibility: Yes
• GM2 Compatibility: Yes
• Expansion Voice: Yes (approx. 400 MB)
• Editing: Voice Set
• Parts: Right 1, Right 2, Right 3, Left

Effects:

• Reverb: 59 Preset + 30 User
• Chorus: 106 Preset + 30 User
• DSP: 322 Preset + 30 User
• Insertion Effect: 1-5: 322 Preset + 30 User
• Master Compressor: 5 Preset + 30 User
• Master EQ: 5 Preset + 30 User
• Part EQ: 28 Parts
• Other Effects: Mic/Guitar effects: Noise Gate x 1, Compressor x 1, 3 Band EQ
• Arpeggio: Yes

Accompaniment Styles:

• Number of Preset Styles: 400
• Featured Styles: 353 Pro Styles, 34 Session Styles, 10 DJ Styles, 3 Free Play
• Fingering: Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard
• Style Control: INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3
• One Touch Setting (OTS): 4 for each Style
• Style Section Reset: Yes
• Expansion Style: Yes (Internal Memory)
• Compatibility: Style File Format, Style File Format GE

Songs:

• Number of Preset Songs: 5 Sample Songs
• Recording: Number of Songs: Unlimited (depends on the drive capacity)
• Number of Tracks: 16
• Data Capacity: Approx. 3 MB/Song
• Recording Function: Quick Recording, Multi Recording, Step Recording
• Playback Format: SMF (Format 0 & 1), XF
• Recording Format: SMF (Format 0)

Multi Pads:

• Number of Multi Pad Banks: 226 Banks x 4 Pads
• Audio Link: Yes

Registration:

• Number of Buttons: 8
• Control: Registration Sequence, Freeze
• Playlist: 2,500 (max.) Records per Playlist file
• Search: Registration Bank

Lesson/Guide:

• Follow Lights, Any Key, Karao-Key, Your Tempo

Demo/Help:

• Demonstration: Yes

Overall Controls:

• Metronome: Yes
• Tempo Range: 5 - 500, Tap Tempo
• Transpose: -12 - 0 - +12
• Tuning: 414.8 - 440 - 466.8 Hz
• Octave Button: Yes
• Scale Type: 9 types

Miscellaneous:

• Direct Access: Yes
• Text Display Function: Yes
• Wallpaper Customization: Yes

Functions:

• Harmony/Echo: Yes (with Arpeggio)
• Panel Sustain: Yes
• Mono/Poly: Yes
• Voice Information: Yes
• Style Creator: Yes
• OTS Information: Yes
• Score Display Function: Yes
• Lyrics Display Function: Yes
• Song Creator: Yes
• Multi Pad Creator: Yes

Audio Recorder/Player:

• Recording Time (Max.): 80 minutes/Song
• Recording: .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (44.1 kHz sample rate, 128/256/320 kbps, mono/stereo)
• Playback: .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (MPEG-1 Audio Layer-3: 44.1/48.0 kHz sample rate, 64-320 kbps and variable bit rate, mono/stereo)
• Lyrics Display Function: Yes (.mp3 only)
• Time Stretch: Yes
• Pitch Shift: Yes
• Vocal Cancel: Yes

Storage and Connectivity:

• Internal Memory: Yes (approx. 1 GB)
• External Drives: USB flash drive
• Headphones: Yes
• FOOT PEDAL: 1 (SUSTAIN), 2 (ARTICULATION), Function Assignable
• Microphone: Microphone/Guitar x 1
• MIDI: IN, OUT
• AUX IN: Stereo mini jack
• LINE OUT: MAIN OUTPUT (L/L+R, R)
• USB TO DEVICE: Yes
• USB TO HOST: Yes

Amplifiers and Speakers:

• Amplifiers: 15 W x 2
• Speakers: 13 cm x 2 + 5 cm x 2

Power Supply:

• Power Supply: PA-300C or an equivalent recommended by Yamaha
• Power Consumption: 21 W
• Auto Power Off Function: Yes

Accessories:

• Included Accessories: Owner's Manual, Online Member Product Registration, Music Rest, AC Adaptor
