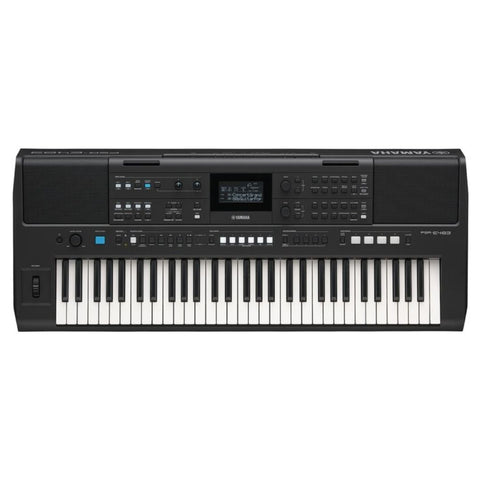

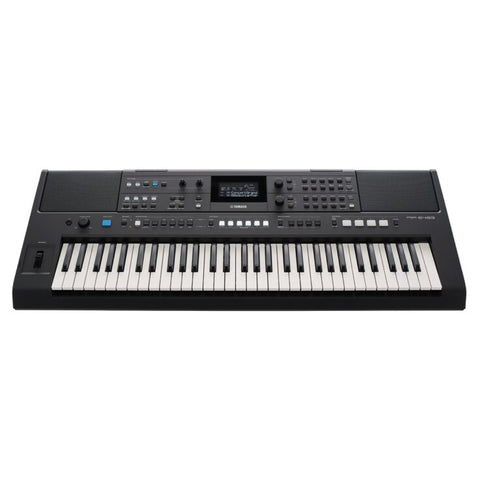

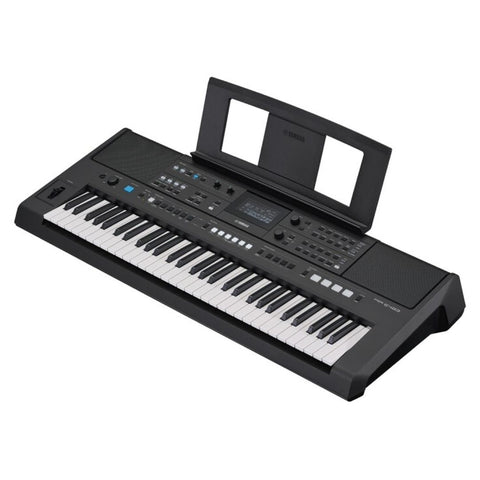

Yamaha PSR-E483 61 Key Digital Keyboard

The Yamaha PSR-E483 is a portable 61-key keyboard designed for at-home players and aspiring musicians, packed with expressive sounds and intuitive controls to make playing and creating effortless.

Features

• 860 expressive Voices
• 345 preset Styles
• Live Control Knobs
• Pitch Bend wheel
• Clear display screen
• Semi-professional sound and advanced features for creating, practicing, and performance

Specification

Size/Weight:

• Dimensions: Width: 992 mm (39-1/16"), Height: 136 mm (5-3/8"), Depth: 404 mm (15-7/8")
• Weight: 7.0 kg (15 lb, 7 oz) (not including batteries)
• Packing Box: Width: 1068 mm (42-1/16"), Height: 216 mm (8-1/2"), Depth: 500 mm (19-11/16")

Control Interface:

• Keyboard: Number of Keys: 61
• Keyboard Type: Organ-Style
• Touch Response: Yes (Soft, Medium, Hard, Off)
• Display Type: LCD
• Display Backlight: Yes
• Display Language: English
• Panel Language: English
• Pitch Bend: Yes
• Modulation: No
• Art. Switches: Yes
• Control Knobs: 2

Voices:

• Tone Generating Technology: AWM Stereo Sampling
• Polyphony: Number of Polyphony (Max.): 64
• Preset Voices: 860 (322 Voices + 40 Drum/SFX Kits + 40 Arpeggio Voices + 458 XGlite Voices)
• Featured Voices: 15 S.Art Lite Voices
• GM Compatibility: Yes
• XGlite Compatibility: Yes

Accompaniment Styles:

• Number of Preset Styles: 345
• Fingering: Multi Finger, Smart Chord
• Style Control: ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN A, MAIN B, TRACK ON/OFF
• One Touch Setting (OTS): Yes
• Auto Chord Play: 100 Chord Progressions + 10 USER Chord Progressions
• Expansion Style: 10
• Compatibility: Style File Format (SFF)

Effects:

• DSP: DSP1: 41 types + DSP2: 12 types
• Motion Effect: 57 types
• Reverb: 15 types
• Chorus: 7 types
• Master EQ: 5 types

Functions:

• Dual/Layers: Yes
• Split: Yes
• Melody Suppressor: Yes
• Harmony/Echo: 26 types
• Arpeggio: 164 types

Songs:

• Number of Preset Songs: 2
• Recording: Number of Songs: 10
• Number of Tracks: 6 (5 Melody + 1 Style)
• Data Capacity: Approx. 19,000 notes (total for all 10 Songs)
• Playback Format: SMF (Formats 0 & 1)
• Recording Format: Original File Format (SMF 0 conversion function)

USB Audio Recorder:

• Recording Time (Max.): 80 minutes (approx. 0.9 GB) per Song
• Playback Format: WAV (44.1 kHz, 16-bit, stereo)
• Recording Format: WAV (44.1 kHz, 16-bit, stereo)

Quick Sampling:

• Sampling Type: Oneshot, Loop
• Samples (Preset/User): 4
• Sampling Time: Approx. 9.6 sec
• Sampling Sources: AUX IN, MIC INPUT, USB audio interface, WAV format files
• Sampling Format: Original File Format (16-bit, stereo)
• Sampling Rate: 44.1 kHz

USB Audio Interface:

• 44.1 kHz, 16-bit, stereo

Registration:

• Number of Buttons: 4 (x 8 banks)
• Control: Freeze

Overall Controls:

• Metronome: Yes
• Tempo Range: 11 - 280
• Transpose: -12 - 0 - +12
• Tuning: 427.0 - 440.0 - 453.0 Hz (approx. 0.2 Hz increments)
• Octave Button: Yes
• Scale Type: 5

Miscellaneous:

• PIANO Button: Yes
• Looper: Yes
• Megaboost: 2 steps (approx. +3 dB, and +6 dB)

Storage and Connectivity:

• Internal Memory: Approx. 1.72 MB
• External Drives: USB flash drive
• DC IN: 12 V
• AUX IN: Stereo mini jack × 1
• Headphones: Standard stereo phone jack × 1
• Foot Switch: Yes (Sustain, Arpeggio Hold, Sustain + Arpeggio Hold, Articulation)
• Expression Pedal: No
• USB TO DEVICE: Yes (USB Type-A)
• USB TO HOST: Yes (USB Type-C™)
• LINE OUT: Standard stereo phone jacks: L/L+R, R
• Microphone: Standard stereo phone jack × 1

Sound System:

• Amplifiers: 6 W × 2
• Speakers: 12 cm × 2

Power Supply:

• AC Adaptor: PA-150 or an equivalent recommended by Yamaha (Output: DC 12 V, 1.5 A)
• Batteries: Six "AA" size alkaline (LR6), manganese (R6), or Ni-MH rechargeable batteries
• Power Consumption: 13 W (when using PA-150C AC adaptor)
• Auto Power Off Function: Yes (Disabled/5/10/15/30/60/120 minutes)

Accessories:

• Included Accessories: Owner's Manual, Music Rest, AC adaptor: PA-150 or an equivalent recommended by Yamaha
