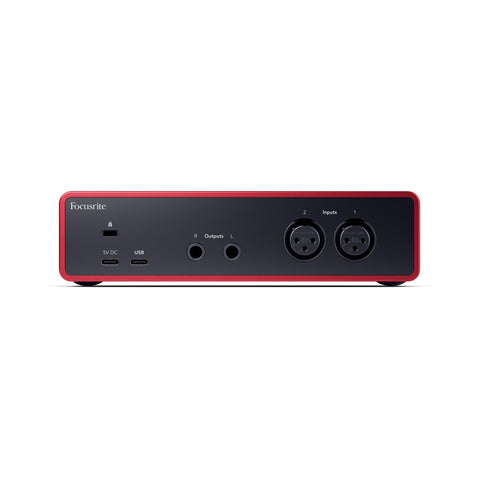

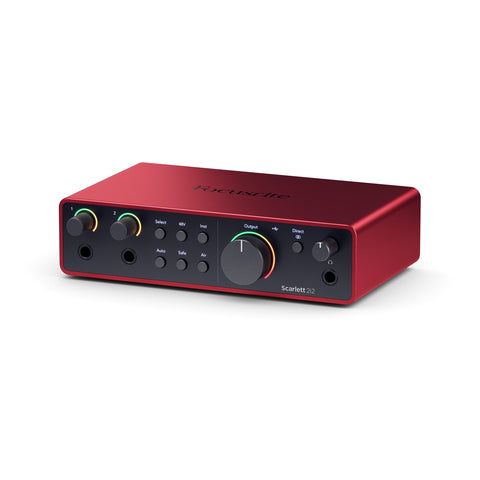

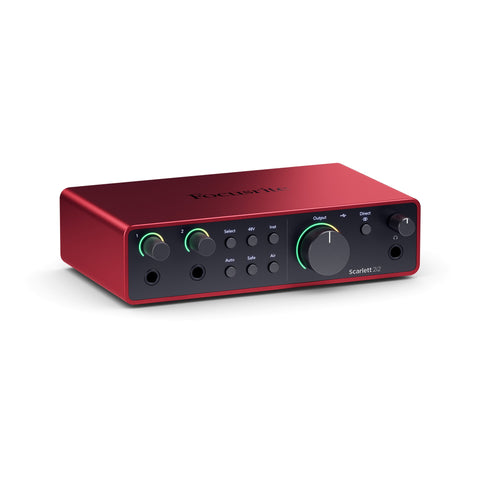

Focusrite Scarlett 2i2 USB Audio Interface (4rd Generation)
2-in/2-out USB-C Audio Interface with 2 Mic Preamps, Auto Gain, Clip Safe, Dynamic Gain Halos, Easy Start, and Hitmaker Expansion Bundle
The original studio-quality 2-in, 2-out interface, has been remastered for the artist. Two of our most detailed ultra-low-noise mic pres. Hi-Z and super-high-quality line inputs for guitars, keys and synths. Studio-grade converters, with a huge 120dB dynamic range that matches what you'd find in a pro studio.
Auto Gain and Clip Safe make sure you'll never need to worry about your levels. Air mode, with Presence and Harmonic Drive, gives you that big console sound wherever you record. And the Hitmaker Expansion software bundle includes all the tools you need to record, produce and release your tracks.
Overview
- Number of Microphone Preamps: 2
- Phantom Power: Yes
- Instrument Inputs: 2
- Line Inputs: 2
- Air Mode: Yes
- Auto Gain: Yes
- Clip Safe: Yes
- Line Outputs: 2
- Headphone Outputs: 1
- Loopback: Yes
- Connectivity: USB Type-C
- Protocol: USB 2.0
- Form Factor: Desktop
- Simultaneous I/O: 4 x 2 (including Loopback inputs)
- A/D Resolution: 24-bit/192 kHz
- Bus Powered: Yes (900mA)
Dimensions
- Height: 47.5mm
- Width: 180mm
- Depth: 117mm
- Weight: 0.595kg
Supported sample rates
- 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Microphone inputs
- Frequency Response: 20-20kHz ± 0.06dB
- Dynamic Range: 116dB (A-Weighted)
- THD+N: -100dB @ 8dB gain
- Noise EIN: -127dBu (A-Weighted)
- Maximum Input Level: 16dBu
- Gain Range: 69dB
- Impedance: 3kΩ
Line inputs
- Frequency Response: 20-20kHz ± 0.05dB
- Dynamic Range: 115.5dB (A-Weighted)
- THD+N: -100dB @ 8dB gain
- Maximum Input Level: 22dBu
- Gain Range: 69dB
- Impedance: 60kΩ
Instrument inputs
- Frequency Response: 20-20kHz ± 0.15dB
- Dynamic Range: 113dB (A-Weighted)
- THD+N: -80dB @ minimum gain
- Maximum Input Level: 12dBu
- Gain Range: 62dB
- Impedance: 1MΩ
Line outputs (Balanced)
- Frequency Response: 20-20kHz ± 0.02dB
- Dynamic Range: 120dB
- THD+N: -109dB
- Maximum Output Level: 16dBu
- Impedance: 100Ω
Headphone outputs
- Frequency Response: 20-20kHz ± 0.1dB @ 33Ω / 300Ω
-
Dynamic Range: 112dB @ 33Ω
115dB @ 300Ω -
THD+N: -99dB @ 33Ω
-108dB @ 300Ω -
Maximum Output Level: 2.5dBu into 33Ω
10dBu into 300Ω -
Maximum Output Power: 32mW into 33Ω
22mW into 300Ω - Impedance: 50Ω
Analogue to Digital Converter
- THD+N: -110dB
- Dynamic Range: 120dB
Digital to Analogue Converter
- THD+N: -115dB
- Dynamic Range: 130dB (A-Weighted)
Power
- USB: 900mA
- External (Optional): 4.5W
