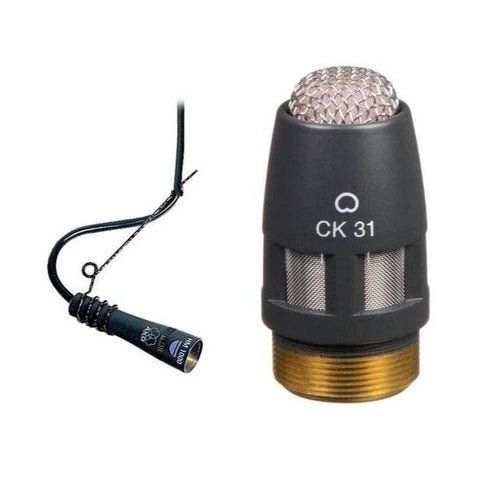

AKG HM1000 Hanging Module and CK31 Cardioid Microphone Capsule Kit

AKG HM1000 hanging module, a 33' hanging cable, a spring-loaded steel clip, and the CK31 modular cardioid microphone capsule

RM 1,320.00
Contact on WhatsApp

AKG HM1000 Hanging Module
The HM1000 is used to fly microphones from the ceiling to pick up music or speech in houses of worship and conference rooms and on theater stages. The HM1000 provides a 10m (33ft) cable, specially treated to reduce twisting, even if the environment temperature varies. A spring steel hanging clamp for precise microphone alignment keeps the microphone securely in position. A switchable LED ring helps the sound engineer in monitoring system function during the soundcheck. The hanging module fits all DAM Series capsules, CK31, CK32, CK33, CK47 and CK80, via highly reliable contacts.

Bass cut filter: 250 Hz
Recommended load impedance: 2000 Ohms
Audio Output Type: Balanced XLR
Audio Output Gender: Male
Audio Output Contacts: 3-pin


AKG CK31 Cardioid Microphone Capsule Kit
The CK31 is a high-performance condenser microphone capsule with a wide cardioid polar pattern, especially designed for inexperienced speakers and applications where more than one person uses the microphone in turn. The CK31 capsule is integrated in a rugged metal housing and fits any mounting module of the DAM Series. To prevent contact problems, the capsule is equipped with large-area, self-cleaning, gold-plated contacts with deep threads to prevent misalignment and ensure extra-long life. The package includes a special two-part windscreen, which efficiently reduces wind and pop noise.

Audio frequency bandwidth: 50 - 20000 Hz
Equivalent noise level: 21 dB-A
Sensitivity: 20 mV/Pa
Signal to Noise: 73 dB-A
Electrical impedance: 600 Ohms
Recommended load impedance: 2000 Ohms
Polar Pattern: Cardioid
Finish: matte dark gray
Power requirement: 9 to 52 V 9-52 V phantom power to IEC 61938 - Requires DPA-P or DPA adapter (integrated in GN** and HM 1000 Installation Modules)

AKG HM1000 Hanging Module and CK31 Cardioid Microphone Capsule Kit

1 x HM1000 M Hanging Module with 10M System Cable
1 x Hanging Clamp
1 x LED Ring Expander
1 x CK31 High-Performance Cardioid Condenser Microphone Capsule
1 x W30 Windscreen
