Yamaha MSP3A 4 inch Powered Studio Monitor

Yamaha MSP3A 4 inch Powered Studio Monitor. Yamaha MSP3A 4-inch two-way powered monitor with a 22 W amplifier, 67 Hz–22 kHz response and RCA/XLR-TRS inputs.

Before you buy

• What power and driver sizes are listed? It has a 22 W output, a 4-inch LF cone and 0.8-inch HF dome in a bass-reflex enclosure.
• Which inputs does it accept? The specification lists one RCA LINE input and one XLR/TRS combo LINE input; match levels and cables to your setup.

Browse related studio monitors

Featuring a 22-watt built-in amplifier and Twisted Flare Port for clearer bass, the MSP3A reference monitor produces sound that is faithful to the original. With a variety of inputs, controls and optional support brackets, the MSP3A is ideal for small studios, post-production, monitoring electronic instruments and surround reproduction.

Features

• Authentic sound in a compact body
• Clear bass from unique Twisted Flare Port technology
• Versatile inputs and controls
• Mounting points for ceiling and wall mounting brackets and mic stand adaptor options

Specifications

General

• Type: 2-way powered speaker, Bass-reflex (Twisted Flare Port)
• Frequency Response: 67Hz - 22kHz
• Components: LF: 4" Cone, HF: 0.8" Dome
• Output Power: 22W
• Max Output Level: 99dB SPL
• Crossover: 4kHz

Inputs/Outputs

• LINE 1: RCA (-10 dBu, 10kΩ)
• LINE 2: Combo (XLR/TRS, +4.0 dBu, 10kΩ)

Power

• Requirements: Varies by region (120V/230V 50/60Hz)
• Consumption: 30W

Controls

• Level: LINE1, LINE2
• Tone: LOW/HIGH (-3.0dB to +3.0dB)

Dimensions/Weight

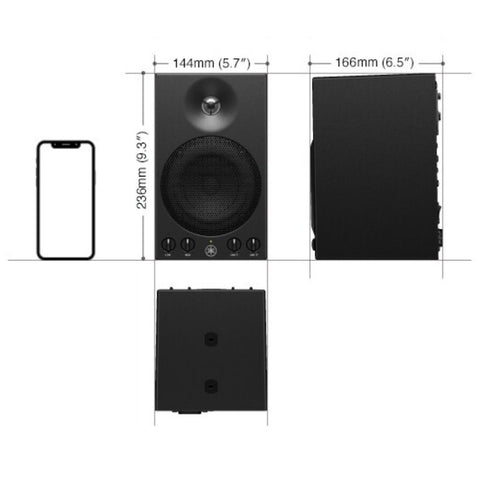

• Size: W 144mm x H 236mm x D 166mm
• Weight: 3.6kg

Accessories

• Included: Power cord, Owner's manual
• Mounting: 2 x M5 (Depth 15mm)
• Options: Mic stand adaptor, clamps, wall/ceiling brackets
