Famousound MAX4800 2CHNL 2X830W 8OHM Power Amplifier

RM 2,250.00 RM 2,500.00you save RM 250.00
Contact on WhatsApp

Professional power amplifier with high quality and performance. The highest occupation ratio Class H SMPS product is ideal for various audio systems applications with high performance-cost ratio. Excellent electronic sound performance and power level made superior efficiency in industrial audio systems that requiring low leaking currents, noiseless, and reliable sound performance.

  • Adopt stable mature H output circuitry, high efficiency and high cost-performance ratio.
  • Power range is from 300-1250W with totally 7 models to apply the need for all kinds of power.
  • Brand-new optimal-designed temperature control power gain can effectively improve applicable stability.
  • Adopt excellent and reliable components.
  • Comprehensive electronic circuit protection like high-frequency squeal, high temperature, over heat, over load, DC output, etc.
  • Non-leaky magnetic-ringed transformer is stable and reliable.
  • Full automatic installation technology for AI components can assure the consistency of product.
  • Removable dust-proof cover is convenient for daily cleanness and maintenance.
  • Suitable for application project for senior Karaoke business club, multi-media conference etc.
  • Output Power (RMS) :
  •  8 Ω stereo* - 830W
  • 4 Ω stereo* - 1250W
  • 2 Ω stereo** - 1800W
  • Bridged Mode (RMS) :
  • 8 Ω stereo* - 2500W
  • 4 Ω stereo** - 3600W
  • Frequency Response : 20Hz - 20kHz
  • THD+N : <0.05%
  • Damping Factor : >200
  • Signal to Noise Ratio : >80 dB
  • Slew Rate : 20V/μs
  • Crosstalk : >60 dB
  • Input Sensitivity : 0.775V / 1V / 1.4V
  • Input Impedance : Balance 10K Ω / Unbalance 20K Ω
  • Voltage Gain (8 Ω) : 40.2 dB
  • Output Circuitry : 3-tier Class H
  • Indicator Controls :
  • Power, Signal, Clop, Protection

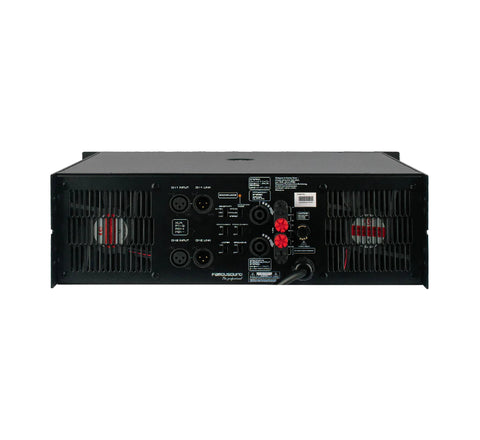

  • Rear panel
  • Bridge
  • Front Panel Controls :
  • Power switch
  • Volume control knob
  • Rear Panel Controls :
  • Stereo/parallel bridge switch
  • Grounding switch
  • Connectors (Inputs) :
  • XLR Female & XLR Male
  • Connectors (Outputs) :
  •  Binding posts, NL4 Speakon
  • Cooling : Air flow from front to rear panel
  • Protection :
  •  Soft start
  • DC
  • Short circuit
  • Over load
  • Clip limit
  • Over heat
  • Progressive volume
  • VHF
  • Power Requirements :
  • AC220V / 50Hz ± 10%
  • Non-removable IEC power cord
