Yamaha HS4 B Powered Studio Monitor
The black HS4 Studio Monitors from Yamaha are two speakers, one active that powers both speakers, which have 2-way nearfield monitors that provide a wide and accurate frequency response. Designed to deliver uncompromising audio quality for creatives with limited space, the HS4 monitors excel in applications such as music production and video editing.
The HS4 sports a 1" dome tweeter and a 4.5" cone woofer fed by a 26W amplifier. The rear panel features 3-way room correction trim switches for boosting low frequencies and attenuating or boosting high frequencies, letting you quickly tune your speakers for your unique acoustic environment, while volume control is available on the front panel. XLR-1/4" combo, stereo 3.5mm, and stereo RCA inputs provide balanced and unbalanced connection options, while a dedicated front-panel 3.5mm headphone output lets you quickly switch between monitors and headphones for mixing reference or in-room recording. The HS4 studio monitors include a speaker cable, a stereo 3.5mm to RCA cable, and eight anti-slip pads.
- For Music Production and Video Editing
- 1" Dome Tweeter and 4.5" Cone Woofer
- 26W Output Power per Speaker
- 3-Way 500 Hz Room Control Switch
- 3-Way 2 kHz HF Trim Switch
- Wide Frequency Response
- Twisted Flair Port Reduces Bass Noise
- XLR-1/4" Combo, 3.5mm, and RCA Inputs
- Dedicated Headphone Output
- Speaker type : 2-way powered speaker, Bass-reflex type
- Frequency response (-10dB) : 60 Hz - 22 kHz
- Frequency response (-3dB) : 83 Hz - 20 kHz
- Crossover : 2.3 kHz
- Maximum Output Level (Measured peak, IEC noise@1m) : 102 dB SPL
- Components : HF : 1" Dome | LF : 4.5" Cone
- Nominal impedance : 6 Ω

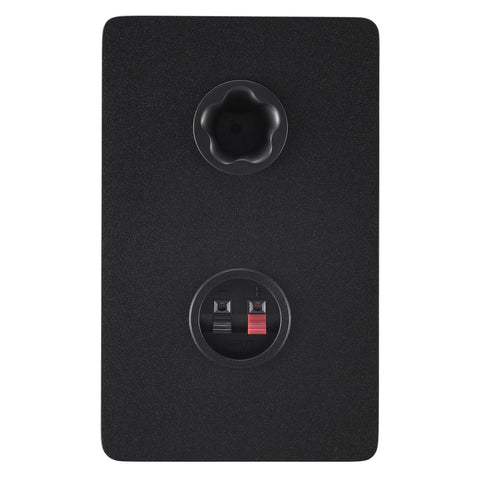

- I/O connectors : [Input Connector] L Side: COMBO (XLR/TRS Phone) ×2, RCA ×2, Stereo Mini, R Side: Speaker Input; [Output Connector] L Side: Headphone, Speaker Output
- Output power : 26 W + 26 W (Dynamic, RL=6 Ω), 20 W + 20 W (THD 0.1%, 1kHz, RL=6 Ω)
- Input sensitivity : LINE 1 (COMBO): +4 dBu, LINE 2 (RCA, ST Mini): -10 dBu (Volume: Maximum)
- Input Level : LINE 1 (COMBO): +20 dBu, LINE 2 (RCA, ST Mini): +6 dBu (Maximum Input)
- Input impedance : LINE 1 (COMBO): 20 kΩ, LINE 2 (RCA, ST Mini): 10 kΩ
- Controls : Front: Volume, Rear: ROOM CONTROL SWITCH (0/-2/-4 dB under 500 Hz), HIGH TRIM SWITCH (+2/0/-2 dB above 2 kHz)
- Power requirements : Depending on area of purchase; 100-240 V, 50/60 Hz (*)
- Power consumption : 15 W
- Cabinet material : MDF
- Dimensions : w :L Side: 132 mm (5.2"), R Side: 132 mm (5.2") | H :L Side: 240 mm (9.4"), R Side: 240 mm (9.4") | D : L Side: 213 mm (8.4"), R Side: 203 mm (8.0")
- Net weight : L Side: 3.7 kg (8.2 lb), R Side: 3.1 kg (6.8 lb)
- Accessories : Stereo Mini - RCA Cable 1.5 m, Speaker Cable 2.5 m, Anti Slip Pad, Quick Start Guide, Safety Guide
